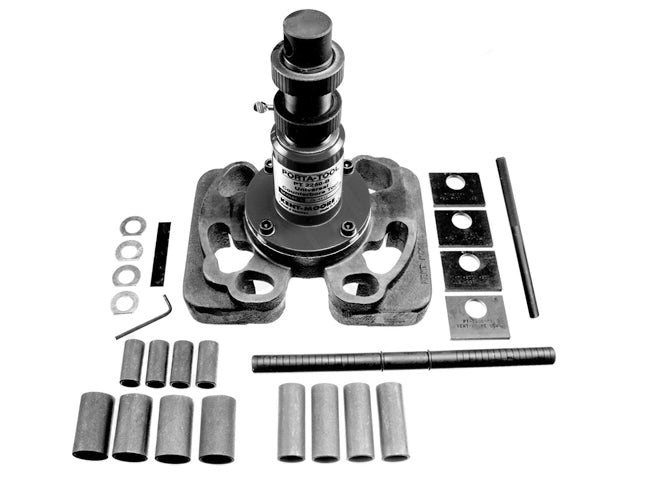

PT-2250-B 50133 Upper Deck Counterbore Basic Kit
For Cummins, Caterpillar, Mack and International.
Drive Connector Square (Male) Nominal Size:- 25,0 mm
The PT-2250-B Counterbore Tool Kit is engineered for precision and efficiency in counterbore repair and finishing. It’s perfect for:
- Cleaning up existing counterbores
- Recutting counterbores prior to shimming
- Finish-cutting the counterbore ledge in newly installed repair sleeves
Designed for fast setup and exceptional accuracy, this tool features a self-centering cutter plate manufactured to tight tolerances for precise alignment. The exclusive double-depth set collar—with .001" incremental adjustments—eliminates the need for feeler gauges and ensures consistent counterbore depth across all cylinders.
Its low-profile design allows in-frame engine repairs, saving both time and labor. Additionally, the tool supports counterbore ledge depth checks using the PT-5025 Dial Depth Gauge without removing the tool from the engine.
Note:
The PT-2250-B is a basic kit. Cutter plates are sold separately and must be ordered based on your specific engine application
Includes:
PT-2200-10 Bolt
PT-2400-1 Main Shaft
PT-2400-18A Oil Git
PT-2200-8 Depth Set Collar
PT-2400-19
PT-10093 Cap Screw
PT-2200-12 Main Housing
PT-2000-95 Base Plate
PT-2000-21 Stud Adapter (qty 4)
PT-16005 5/32" Hex Key
PT-2200-14 Cutter Plate Removing Pin
PT-3000-10 Cut Off Washers (4 qty)
PT-2200-17 T-Handle
PT-15010 O-ring
PT-2000-16 Stud Adapter (4 qty)
PT-2200-20 Cutter Set Strap
PT-3000-11 Stud Adapter (qty 4)
PT-2000-62 Off Set Washers (4 qty)
PT-2400-10 Steel Box
