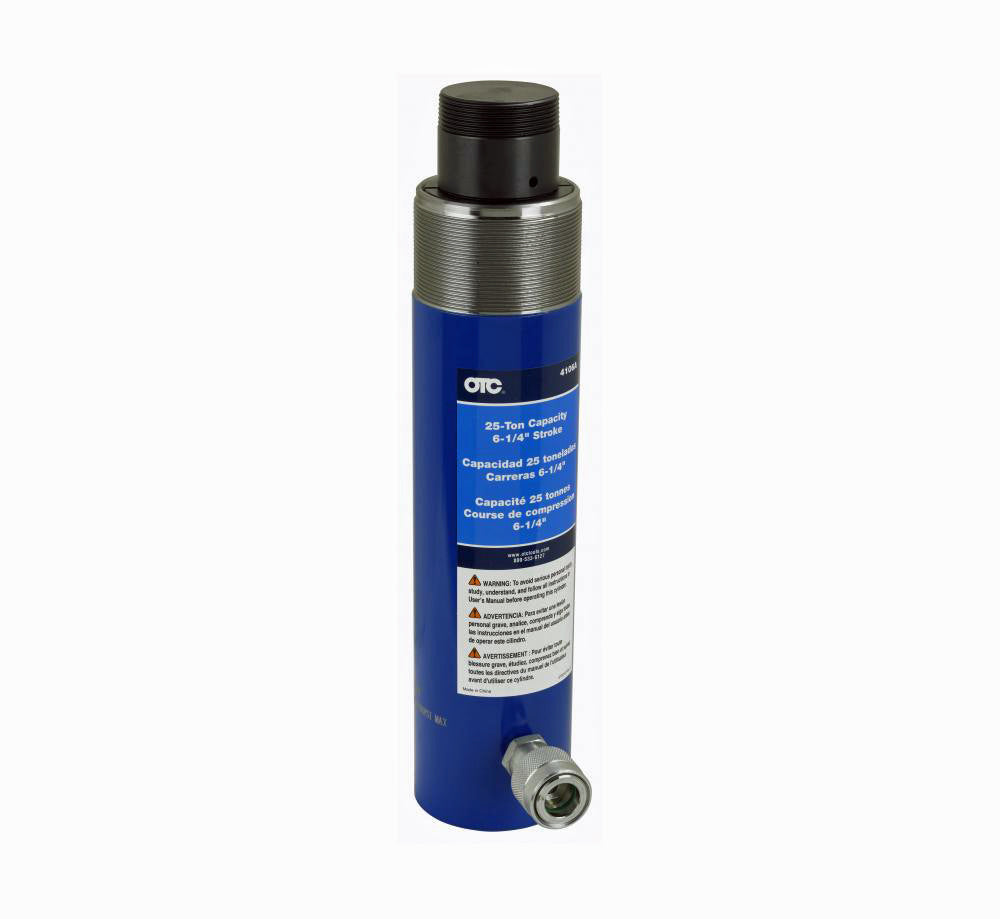

OTC 4106A 25-Ton Single-Acting Spring-Return Ram, 6-1/4" Stroke
OTC 4106A 25-Ton Single-Acting Spring-Return Ram, 6-1/4" Stroke

Note: The product title and description supersede the image shown. The image provided by the manufacturer is not always exact. We may use the same image for multiple sizes of an item.

OTC Equipment Tools

OTC 4106A 25-Ton Single-Acting Spring-Return Ram, 6-1/4" Stroke

SKU: OTC4106A
$1,118.40

Use this text to encourage communication or promote sharing on social networks.

You can also add links

OTC Tools OTC 4106A 25-Ton Single-Acting Spring-Return Ram, 6-1/4" Stroke. OTC's design ensures positive, leak-resistant sealing throughout all pressure ranges, yet full piston return characteristics are maintained. Additional bearing surface has been designed into these units to effectively resist the punishing stress exerted by off-center loads. Depending on capacity, this ram can handle a variety of bending and straightening jobs, construction maintenance applications, pressing operations, body and frame straightening, and rear housing and axle correction. Specifications: Capacity in Tons: 25; Stroke: 6-1/4"; Oil Capacity (cu. in.): 32.2; Effective Ram Area (sq. in.): 5.157; Tons at 10,000 PSI: 25.8; Spring Return: yes; Height Collapsed: 13-3/8"; Height Extended: 19-5/8"; Piston Protrusion at Collapsed Height: 1-7/8"; Diameter: 3-3/8"; Diameter: 2-3/8"; Piston Thread (N.P.T.): 2"; Collar Thread (Straight): 3-5/16"-12; Internal Base Thread (N.P.S.M.): 2"-11 1/2.
