Nissan NI-50283 Rear Axle Kit

The NI-50283 rear axle service kit contains Essential Special Service tools required to service the rear axle assembly on the Titan XD and NV vehicles. There are several required commercially available tools that must be used in conjunction with the Essential tools provided. Refer to the service and safety information for specific details on proper use of the kit components.

Commercial Vehicles dealers will not receive a shipment, as they were all previously shipped these axle service kits. Refer to the service and safety information for specific details on proper use of the kit components.

Required Commercially Available Tools:

1. Two jaw puller –OTC 1031 or equivalent
2. Bearing split plate – OTC 1123 or equivalent
3. Dial indicator set –J-45101 or equivalent
4. M8 Adapter - J-43690-18 or equivalent
5. 36mm, ¾” drive, double hex 12pt socket – EN-48702 or equivalent
6. Puller Shaft - J-8433 or equivalent
7. Threaded Adapter - OTC 8013 or equivalent
8. 40” long, ¾” drive, heavy duty breaker bar

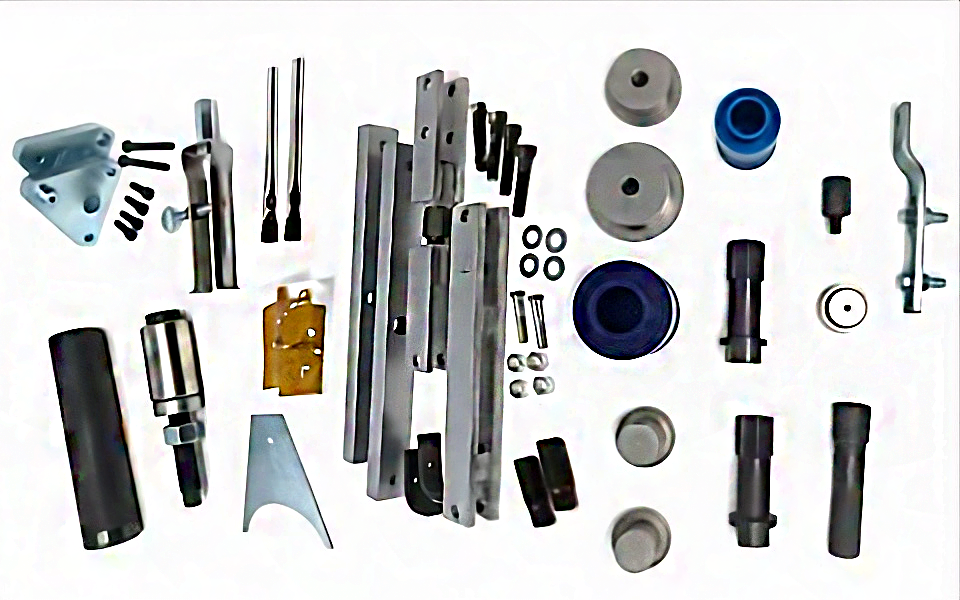

The NI-50283 axle service kit is shipped in two storage cases with die cut foam.

Includes

NI-24385-C  Axle Housing Spreader
NI-51041  Outer Pinion Race Installer
NI-50982  Pinion Seal Installer
NI-50983  Axle Shaft Seal Installer
NI-51047  Side Bearing Remover Pilot
NI-51046  Side Bearing Installer
NI-51040  Copy of Shim Installer
NI-51042  Shim Installer
NI-51045  Side Bearing Installer
NI-51044  Ring Gear Spline Holder
NI-02619-5  Slide Hammer
NI-8092  Universal Driver Handle
Flange Holder, 45012
Pinion Driver, 44421
Spreader Adapters, 51043
Pinion Axle Installer, 51048
Slide Hammer Adapter, 8007
Pinion Bearing Driver, 44412
Seal Remover, 26941

Application: Nissan - 2010+ NV and Titan XD
