Kent-Moore J-26958-10B GM Output Shaft Load Tool Adapter
Kent-Moore J-26958-10B GM Output Shaft Load Tool Adapter

Note: The product title and description supersede the image shown. The image provided by the manufacturer is not always exact. We may use the same image for multiple sizes of an item.

Kent-Moore Tools

Kent-Moore J-26958-10A GM Output Shaft Load Tool Adapter

SKU: KMTJ-26958-10A
$69.99

Use this text to encourage communication or promote sharing on social networks.

You can also add links

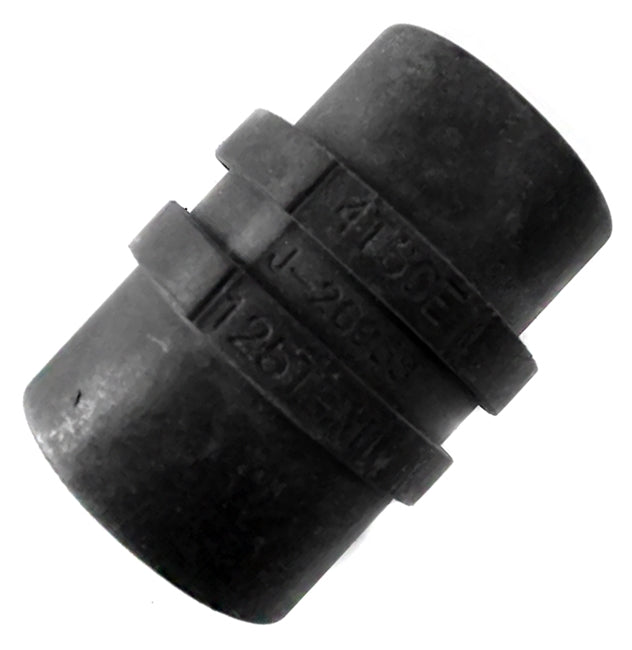

Kent-Moore J-26958-10A GM Output Shaft Load Tool Adapter

Application: General Motors with 4T65E Transmission

J 26958-10A Output Shaft Load Tool is an adapter that ensures that the forcing screw engages appropriately on the shaft end. That adapter does not seat properly in the differential carrier housing on heavy-duty 4T65E units. Install this adapter through the end of the extension housing into the differential carrier housing and attach J 26958 Load Tool & J 43425 Adapter. Hand-tighten the screw to eliminate differential carrier end play.

Measure end play at the input clutch housing using J 33386-A.

Application: General Motors

  • Automatic Transaxle : Drive Line : Allure : 2005
  • Automatic Transaxle : Drive Line : Allure : 2006
  • Automatic Transaxle : Drive Line : Allure : 2007
  • Automatic Transaxle : Drive Line : Allure : 2008
  • Automatic Transaxle : Drive Line : Allure : 2009
  • Automatic Transaxle : Drive Line : G6 : 2005
  • Automatic Transaxle : Drive Line : G6 : 2006
  • Automatic Transaxle : Drive Line : G6 : 2007
  • Automatic Transaxle : Drive Line : G6 : 2008
  • Automatic Transaxle : Drive Line : G6 : 2009
  • Automatic Transaxle : Drive Line : Grand Prix : 1998
  • Automatic Transaxle : Drive Line : Grand Prix : 1999
  • Automatic Transaxle : Drive Line : Grand Prix : 2000
  • Automatic Transaxle : Drive Line : Grand Prix : 2001
  • Automatic Transaxle : Drive Line : Grand Prix : 2002
  • Automatic Transaxle : Drive Line : Grand Prix : 2003
  • Automatic Transaxle : Drive Line : Grand Prix : 2004
  • Automatic Transaxle : Drive Line : Grand Prix : 2005
  • Automatic Transaxle : Drive Line : Grand Prix : 2006
  • Automatic Transaxle : Drive Line : Grand Prix : 2007
  • Automatic Transaxle : Drive Line : Grand Prix : 2008
  • Automatic Transaxle : Drive Line : Impala : 2000
  • Automatic Transaxle : Drive Line : Impala : 2001
  • Automatic Transaxle : Drive Line : Impala : 2002
  • Automatic Transaxle : Drive Line : Impala : 2003

Manufacturer: SPX/Bosch (OTC Rotunda Kent-Moore Miller)
