GM 1.4L Engine Timing Tool Kit for GM Chevrolet Opel 1.0 1.2 1.4

SKU: TIL49977
$59.99

Use this text to encourage communication or promote sharing on social networks.

You can also add links

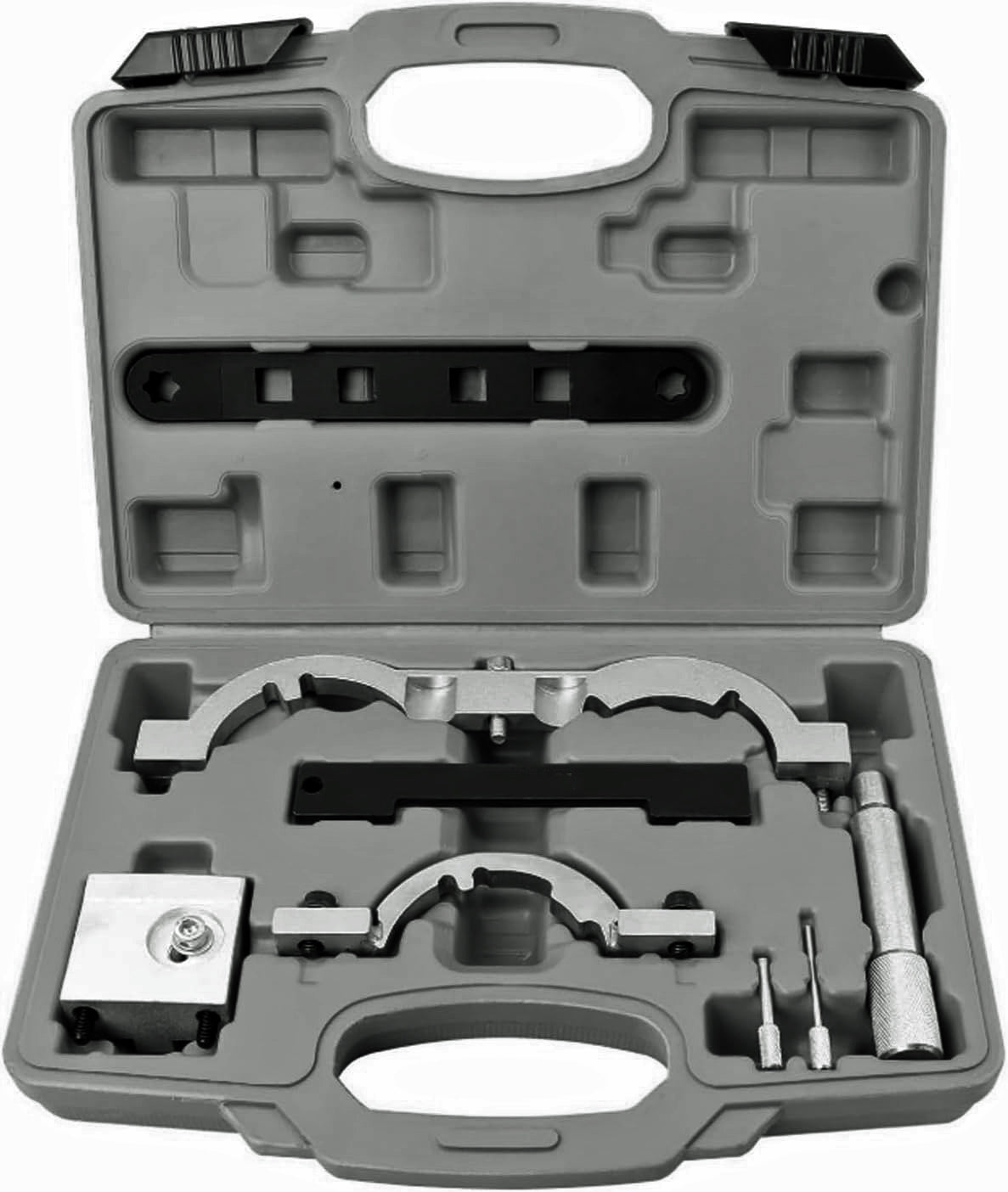

GM 1.4L Engine Timing Tool Kit for GM Chevrolet Opel 1.0 / 1.2 / 1.4 (Chain‑Driven Engines)

This GM 1.4L Engine Timing Tool Kit is designed to check and set the camshaft and crankshaft timing positions on GM, Chevrolet, and Opel/Vauxhall 1.0L, 1.2L, and 1.4L chain‑driven engines. It also includes the tools required to loosen and tighten the belt tensioner during service.

This high‑quality aftermarket kit includes a durable plastic storage case and precision equivalents of the following OEM tools: EN‑49977 (EN‑49977‑100 & EN‑49977‑200), EN‑49978, KM‑953‑A / EN‑953‑A, KM‑952 / EN‑952, KM‑955 / EN‑955.

✔ Included Components

  • VVT Sensor Setting Tool (1.2L & 1.4L)
  • Camshaft Sprocket Holding Tool
  • Camshaft Setting Plate
  • VVT Sensor Setting Tools (1.0L)
  • Chain Tensioner Locking Pin Set (2.5 mm & 4.0 mm)
  • Belt Tensioner Torx E14 Holding Wrench

This kit is engineered for chain‑driven systems (not belt‑driven) and provides the accuracy required for proper timing alignment during engine repair or rebuild.

✔ Vehicle Applications

Compatible with Opel/Vauxhall and GM/Chevrolet 1.0L, 1.2L, and 1.4L gasoline engines, including:

  • Adam 1.2 / 1.4 (2012– )
  • Ampera 1.4 (2011– )
  • Astra‑J 1.4 (2009– )
  • Cruze 1.4 (2011– )
  • Cascada 1.4 (2013– )
  • Corsa‑D 1.0 / 1.2 / 1.4 (2009– )
  • Mokka 1.4 (2012– )
  • Zafira‑C Tourer 1.4 (2011– )
  • Insignia 1.4 (2011– )
  • Meriva‑B 1.4 (2010– )
  • Aveo 1.2 / 1.4 (2011– )
  • Orlando 1.4 (2012– )

✔ Compatible Engine Codes

1.0L: Z10XE, Z10XEP, AXEP 1.2L: A12XEL, A12XER, Z12XE, Z12XEP 1.4L: A14XEL, A14XER, LDD/A14XFL, LUJ/A14NET, A14NEL, LUU, Z14XE, Z14XEP
