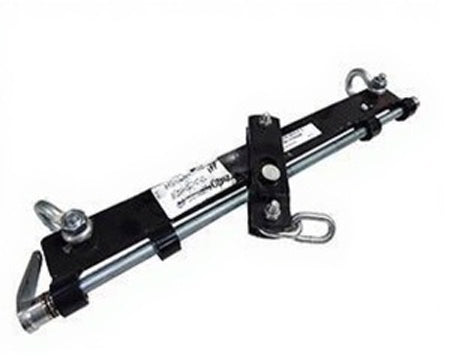

General Motors GM-51102 Battery Pack Lifting Fixture

SKU: GM-51102
$963.99

Use this text to encourage communication or promote sharing on social networks.

You can also add links

General Motors GM-51102 Battery Pack Lifting Fixture

Kent-Moore Number:  EL-51102

GM-51102 is a universal lift bar with a load leveling adjustment screw used with vehicle specific lift straps and hooks that attach to vehicle specific eye-bolts and eye-nuts that attach into holes in the battery pack tray.  Once a pack is lowered from the vehicle using a hydraulic lift table (see GM-52200 Lift Table), the GM-51102 with the proper straps, hooks, and eye-bolts or eye-nuts is used to lift the pack off the table with a floor crane and place it in a location where the individual components can be diagnosed and serviced.  If the pack is to be completely replaced, it can be lowered into the shipping crate that the replacement battery pack arrived in after the GM-51102 and floor crane have removed the new pack from the crate and placed it in a suitable location.  GM-51102 is designed as a universal lifting tool with application on the Bolt EV battery pack, Cadillac CT6 Plug-In Hybrid pack and future vehicle packs.

This is a custom design bar several inches longer than a standard engine load leveling bar, due to the width of the Bolt EV and PHEV battery packs.
