Caterpillar 6V-9050 Manifold Bolts and Studs Repair Set, Alternative
Caterpillar 6V-9050 Manifold Bolts and Studs Repair Set, Alternative

Note: The product title and description supersede the image shown. The image provided by the manufacturer is not always exact. We may use the same image for multiple sizes of an item.

Ferrum Tools

Caterpillar 6V-9050 Manifold Bolts and Studs Repair Set, Alternative

SKU: FEPRO9023
$357.13

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Caterpillar 3200 3300 3400 C9 C15 C-16 C18 C27 C32 Stud Removal Tool Kit 6V-9050 Alternative | CAT Manifold Bolts and Studs Repair Set

Designed to remove broken exhaust manifold studs and bolts.

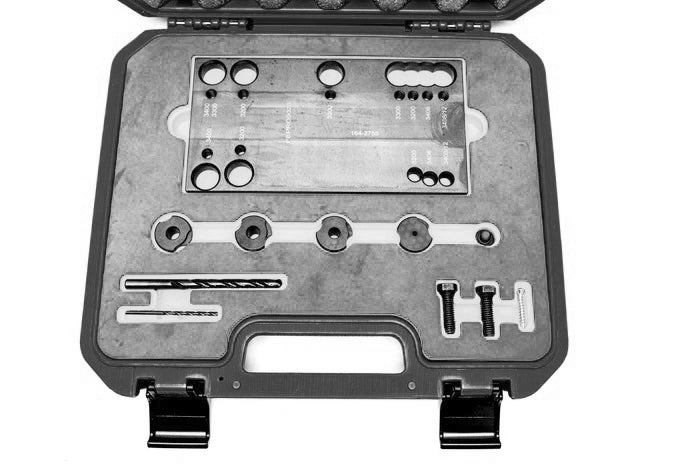

Consists of drill fixture, 2 alignment bushings, 2 drill bushings, and 2 drills

Removal of broken stud begins by using disc grinder to grind broken stud so 164-3755 Drill Fixture can be secured to cylinder head; 1/8 inch drill and drill bushing first used to drill completely through broken stud; then stud is drilled out using 5/16 inch drill and drill bushing.

Since bolts are used to retain exhaust manifolds on 3200 Family Engines, HeliCoil is acceptable for repair of these heads; however, studs with taper lock threads are used to retain exhaust manifolds on 3300 and 3400 Family Engines and HeliCoil cannot be satisfactorily used to repair cylinder heads on these engines.

For Caterpillar Tools Catalog click here

Looking for Caterpillar Tools? Please give us a call!! (909) 334-4400
